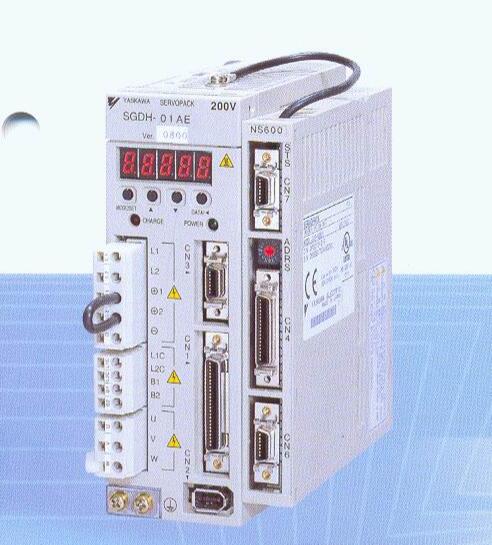

Equipped with INDEXER functional type servo unit (kit type).
Maximum applicable motor capacity: 0.4kw.
Power supply voltage: three phase AC200V.
Interface: instruction selection and installation (linear servo motor).
Matching (hardware): paint.
Matching (software): standard.
Matching (parameter): standard.
Optional module: INDEXER+ full closed loop module.
Simple.
By programming and serial programming, easy implementation of motion control SGDV-550A01A001FT001
Can also be installed through the Windows environment support tool (SigmaWin+) easy to start.
The I/O module can be connected with the upper controller simply.
Smart.
To support the operation of the main purpose of the positioning operation based on the program table.
The maximum number of programmable positioning points to 256 points.
With external positioning, JOG speed table operation, the origin of reversion, rich features such as programmable signal output.
I/O points for the input: 19 points, output: 16 points.
Speedy.
High speed and high precision positioning by combining with high performance V series.
Motion control can be realized without using motion controller.Sigma -V series servo motor SGMGV.
Rated output: 7.5kw.
Power supply voltage: AC200V.
Serial encoder: 20 bit absolute value type (standard).
Design sequence: standard.
Shaft end: straight shaft, without keyway (standard).
Optional: with hold brake (DC90V).
A variety of mechanical feed shaft drive (high speed feed).
Variety is complete (300W ~ 15kW, with hold brake).
Equipped with a high resolution serial encoder (20 bit).
Standard using IP67.
Use example:
Machine tool。
Transport machinery.
Handling machinery。
Food processing machinery.
Rating and specifications:
Rated time: continuous.
Vibration level: V15.
Insulation resistance: DC500V, 10M, or above.
Using ambient temperature: 0 ~ 40 degrees C.
Excitation mode: permanent magnet type.
Installation method: flange type.
Heat resistance grade: F.
Insulation withstand voltage: AC1500V 1 minutes (200V), AC1800V 1 minutes (400V).
Protection mode: fully enclosed self cooling type IP67 (except shaft through part).
The use of environmental humidity: 20 ~ 80% (not dew).
Connection mode: direct connection.
Rotation direction: clockwise direction (CCW) rotation at the load side under the direction of rotation
